What Flooring Do I Need for Dropping Weights?

Whether you are designing a high-traffic commercial strength facility, equipping a functional fitness box, or building a dedicated lifting area in a home garage, dropping heavy weights presents a severe physical challenge to your building's infrastructure. Repeated impact from heavy barbells, bumper plates, and cast-iron dumbbells places massive point loads on floor surfaces, risking cracked subfloors, ruined equipment, and structural noise transmission.

To prevent costly property damage and ensure long-term athlete safety, facility managers and lifters across the UK must select purpose-built surfacing designed for extreme force dissipation. Standard carpet, foam tiles, or thin matting simply cannot absorb the kinetic energy generated during heavy drops.

Choosing the right shock-absorbing gym flooring specification depends on key structural variables: the weight being dropped, the fall height, subfloor material composition, and the density of the protective elastomeric surface.

The Physics of Force Dissipation Under Heavy Impact

When a 100kg+ barbell drops from overhead or hip height, kinetic energy accelerates rapidly until it hits the floor. The force generated at the exact point of contact is significantly higher than the static weight of the barbell itself.

If the flooring surface is unyielding such as raw concrete screed or overly compressible such as low-density EVA foam the kinetic energy transfers straight through to the underlying building frame. This sudden force transfer leads to two primary failure modes:

• Subfloor Compression Failure: The raw concrete chips, pits, or shatters underneath, creating structural spiderweb fractures. On timber floors, joists can flex or break.

• Barbell Rebound and Equipment Damage: Hard subfloors cause barbells to bounce unpredictably, bending steel sleeves, damaging internal needle bearings, and cracking bumper plate cores.

High-density elastomeric rubber flooring acts as a dynamic energy attenuation layer. When hit with heavy impact, the vulcanised rubber matrix deforms slightly, extending the deceleration curve of the weight. This lateral force distribution safely dissipates the energy across a broad area as minor heat and low-frequency motion, protecting both the subfloor and the lifting equipment.

Evaluating Flooring Materials for Heavy Weight Drops

Not all protective floor coverings perform equally under heavy loads. Selecting the correct material composite is essential for long-term durability.

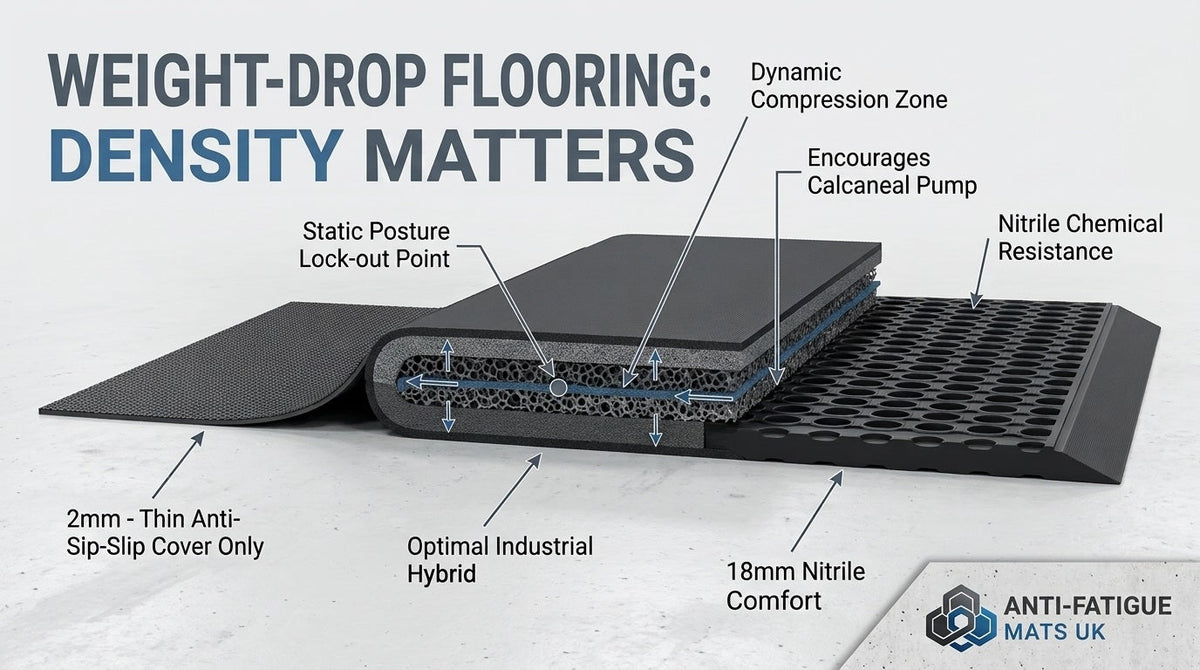

High-Density Vulcanised Rubber

Vulcanised rubber represents the gold standard for weightlifting zones. Heat and pressure treat the rubber compound during manufacturing, creating dense, highly elastic bonds. Vulcanised mats maintain high tensile strength, resist tearing under point pressure, and will not bottom out under heavy barbell drops.

For maximum protection in high-impact lifting bays or heavy machinery zones, deploying a rubber flooring gym horse mats checker provides an exceptional shock-absorption barrier that prevents subfloor fracture and barbell bounce.

Polyurethane-Bonded Recycled EPDM Tiles

Interlocking rubber tiles made from compressed tyre granules bound with polyurethane offer good force dissipation and modular convenience. However, their performance depends heavily on density ratings. Low-density tiles crumble or compress permanently over time under repeated heavy weight drops, making dense vulcanised sheets or thick drop pads superior for heavy strength bays.

EVA Foam (Unsuitable for Weight Drops)

Ethylene-vinyl acetate (EVA) foam tiles are popular for light bodyweight workouts or martial arts mats, but they are completely unsuitable for heavy weights. Foam compresses to zero thickness almost instantly under impact, allowing the full force of the weight to strike the subfloor below.

Exploring our dedicated range of high-density gym flooring ensures you specify materials tested for structural load protection and high-impact resilience.

Thickness Requirements Based on Lifting Regimen

Matching material thickness to your specific training style prevents under-specifying your protective layer.

15mm to 18mm: Standard Free-Weight Zones and Dumbbells

An 18mm thick rubber surface is the ideal starting threshold for uncontrolled dumbbell drops, kettlebell stations, and power racks where barbells are lowered under control or dropped occasionally from low heights.

20mm to 25mm: Heavy Powerlifting and Heavy Dumbbell Bays

When working with heavy deadlifts, power racks, or dumbbells exceeding 30kg, a 20mm to 25mm rubber thickness provides the extra structural margin required to protect concrete slabs from micro-fractures.

30mm to 50mm+: Dedicated Olympic Lifting Drop Platforms

For Olympic weightlifting facilities, CrossFit boxes, and upstairs gym installations where barbells are dropped repeatedly from overhead, 30mm to 50mm composite drop tiles or timber-core lifting platforms are mandatory. These systems feature dense rubber top coats backed by high-density acoustic foam or solid timber bases to isolate shock and block low-frequency sound.

Understanding the principles of ergonomic support and surface thickness across different physical setups is straightforward; reading our guide on what thickness should an anti fatigue mat be gives facility directors valuable insights into material density and shock absorption mechanics.

Subfloor Preparation and Structural Environment

The floor surface beneath your rubber matting dictates how well your gym installation holds up over time.

Ground-Floor Concrete Screed (Garages & Commercial Bays)

Concrete slabs offer strong vertical load support, but brittle top screeds chip easily when struck directly by hard steel or iron weights. Installing high-density rubber over concrete acts as a protective shield against pitting while insulating the space against cold ground temperatures.

In dual-purpose facilities where vehicle weight or industrial storage shares floor space with lifting gear, opting for heavy-duty garage flooring guarantees the surface handles point loads without stretching or shifting out of alignment.

Upper-Floor Suspended Timber Joists

Drop-weight zones located on upper floors require careful engineering. Impact forces translate into low-frequency structural noise that reverberates through timber joists and plasterboard ceilings.

To set up an upper-floor weight area safely:

• Combine a minimum 20mm rubber drop surface with an acoustic rubber underlay.

• Install a plywood sub-base layer to bridge floor joists and distribute weight evenly.

• Avoid dropping heavy barbells directly over unsupported joist spans.

For office spaces or admin bays within fitness facilities, installing premium Anti-Fatigue Mats at standing desks ensures staff maintain comfortable posture and reduced leg strain away from the lifting floor.

Key Maintenance Practices for Impact-Zone Flooring

• Regular Cleaning: Sweep away dust and grit daily. Abrasive debris trapped underneath rubber mats can scratch subfloors when heavy weights land above.

• Moisture Checks: Ensure concrete subfloors are fully cured and sealed. Trapped moisture beneath non-porous rubber can compromise adhesives and create subfloor odor.

• Seam Inspection: Periodically check tile interlocks or mat seams to ensure heavy weight drops have not caused tiles to separate or create trip hazards.

Frequently Asked Questions

Can 18mm rubber mats protect concrete from dropping a 100kg barbell?

Yes, an 18mm high-density vulcanised rubber mat provides strong protection for concrete subfloors when dropping controlled weights. However, if 100kg+ barbells are regularly dropped from overhead, using 30mm to 50mm drop tiles or a dedicated Olympic platform offers superior protection.

Is EVA foam good enough for dropping weights?

No. EVA foam tiles compress completely upon heavy impact, transferring kinetic force straight into the subfloor. Foam also tears easily under footwear friction and lacks the density required for heavy lifting.

How do I stop rubber floor tiles from moving when dropping weights?

High-density rubber mats stay in place due to their substantial weight. For modular tiles, using interlocking edges, heavy-duty double-sided floor tape, or full-surface polyurethane adhesive prevents shifting under lateral impact.

What is the difference between recycled EPDM rubber and vulcanised rubber?

Recycled EPDM consists of rubber granules held together by chemical binders. Vulcanised rubber is heat-molded under pressure, creating a solid, dense mat with higher tear resistance, greater shock absorption, and longer service life under heavy weight drops.

Will rubber gym flooring block drop noise for downstairs neighbors?

Rubber flooring reduces footstep noise and high-frequency clatter significantly. However, blocking deep, low-frequency impact vibrations caused by heavy weight drops on suspended timber floors requires thick 30mm+ acoustic drop tiles combined with a decoupled subfloor underlayment.

Can I lay rubber weightlifting flooring directly over carpet?

Laying thin rubber over plush carpet creates an unstable, spongy foundation that sags under heavy loads. If installing over low-pile commercial carpet, use thick 18mm+ rubber mats or lay down a 12mm plywood sub-base first to ensure flat, stable footing.

How do I clean heavy-duty rubber gym mats after workouts?

Clean rubber floors by vacuuming dust, followed by mopping with warm water and a pH-neutral floor cleaner. Avoid harsh solvents, bleach, or oil-based degreasers, which break down rubber compounds and cause surface deterioration.

Do I need bumper plates if I have 18mm rubber flooring?

Yes. Bumper plates made of dense rubber work together with 18mm rubber flooring to dissipate impact force. Dropping bare cast-iron plates directly on thin rubber can still damage steel barbells and cause localized subfloor pitting over time.

How do I cut 18mm thick rubber mats during installation?

Cut 18mm rubber mats using a heavy-duty utility knife, a straight metal ruler, and a light mist of soapy water along the cut line to lubricate the blade. Make multiple shallow passes rather than attempting to cut through the full 18mm thickness in one stroke.
